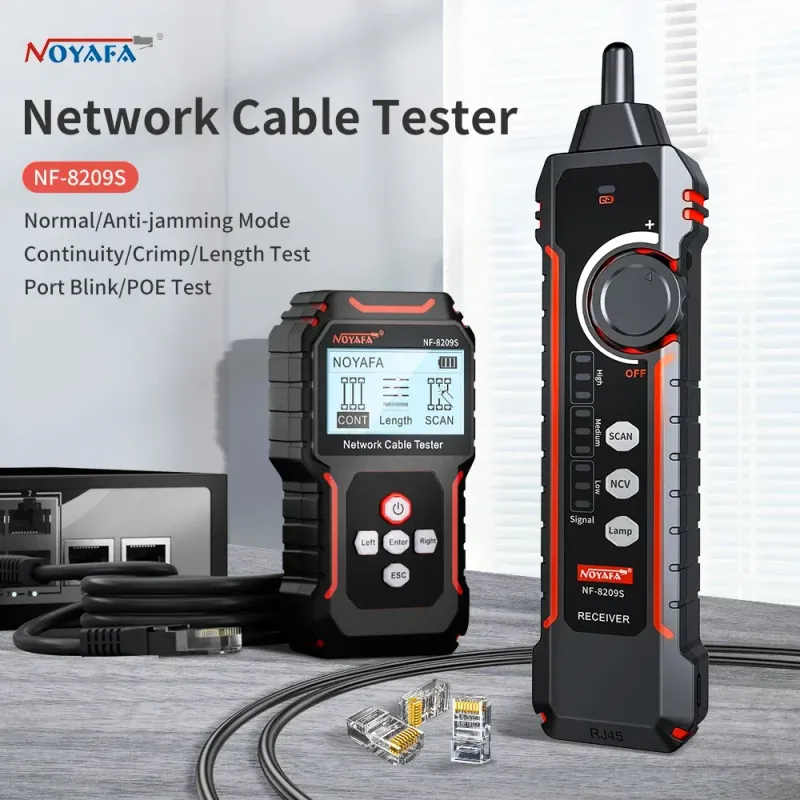

NOYAFA NF-8209S Network Cable Tracker Cat5 Cat6 PoE Tester Detect Length Continuity Test With NCV & Lamp

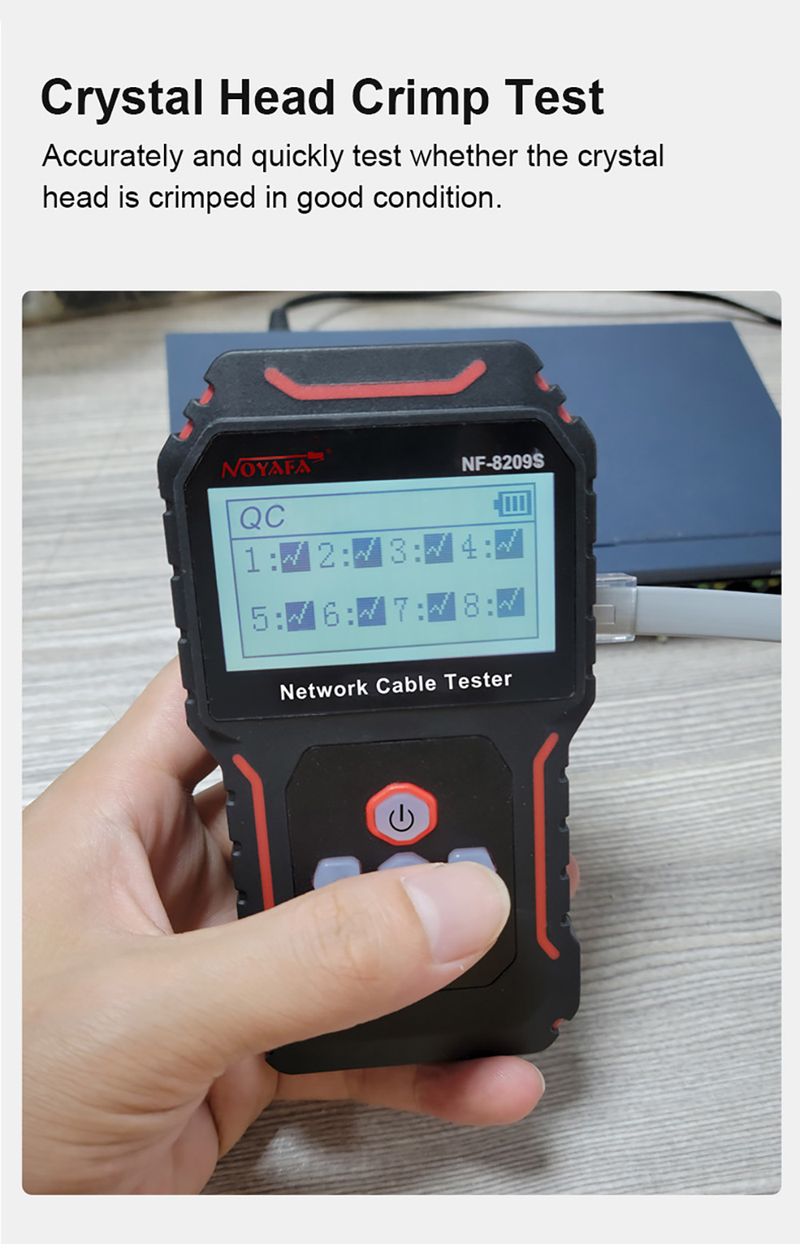

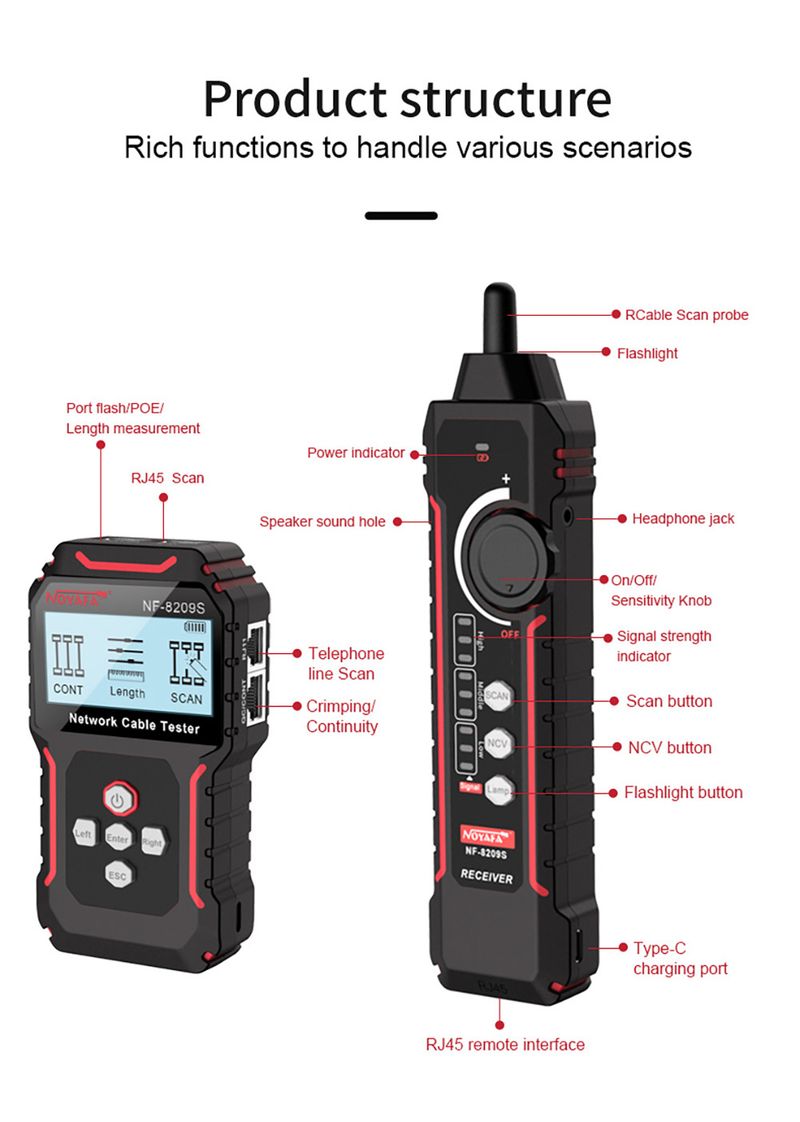

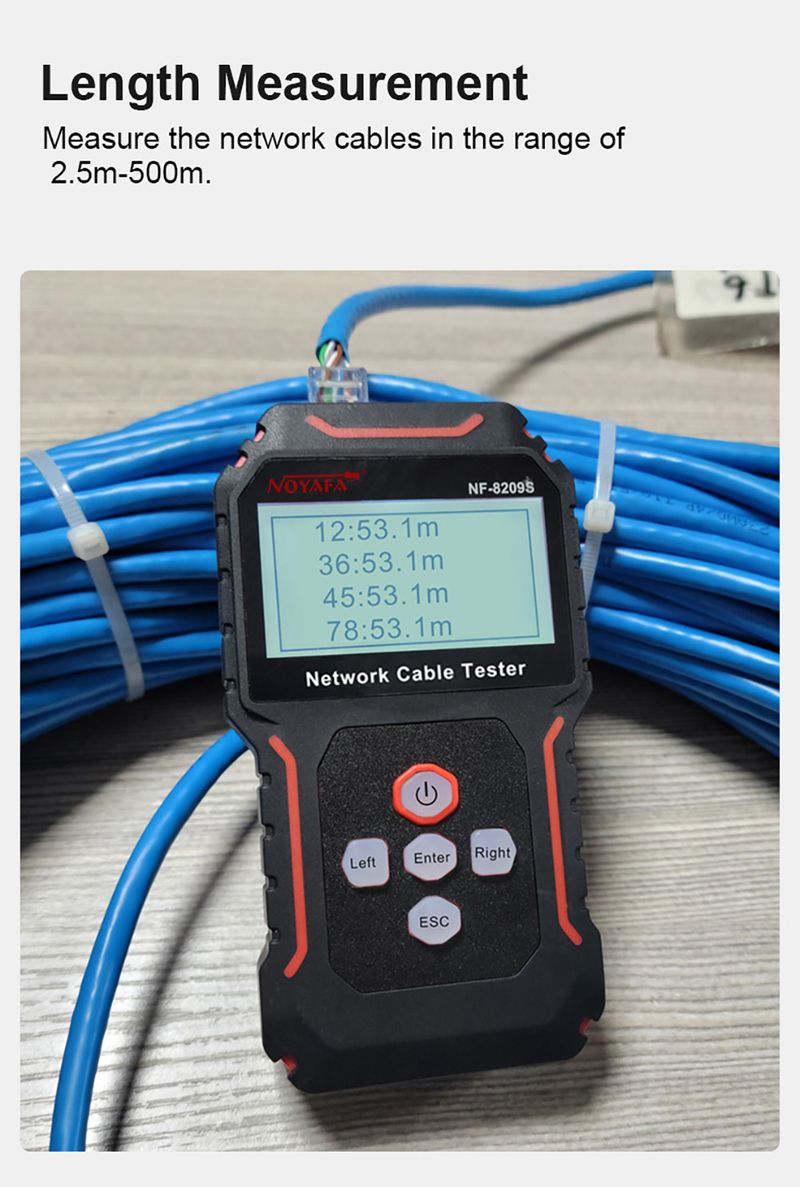

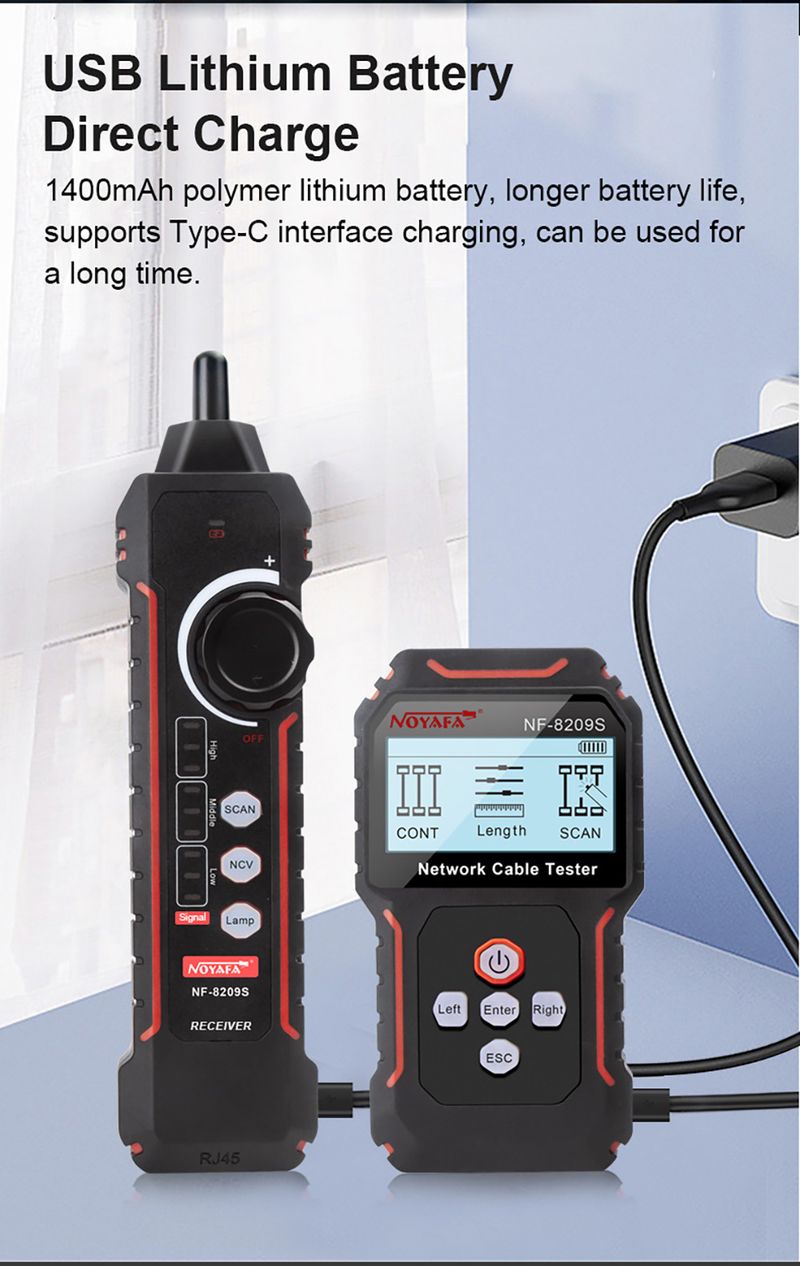

The NF-8209S network cable tester adopts digital signal receiving and decoding technology, which has a higher anti-interference degree and is more accurate, eliminating false alarmsAttheSametime,"ithasfunctionssearchasOrdinarylinehuntinganti-interferencehuntinglinealignmentlengthtestPOEtestPortflashing,CrimpingtestNCVinductionpenandotherfunctionsvgichcanmeettheneedsofuserstoAgreaterExtentandimproveworkefficiency Product Description: Brand: NOYAFA Product Name: Network Cable Tester Type: NF-8209S Size: 125x70x32mm, 198x50x30mm Display: 2.8-inch LCD screen Applicable network cable: CAT5, CAT6 Length Measurement Range: 2.5-600m Battery Type: 3.7V/1400mAh Lithium Battery Low Voltage Prompt: Yes Low Battery Reminder: Yes Voltage Test Range: DC5 ~ 60VPOE Test Main Functions: 1.Line-to-line Test: Test for short circuit, open circuit, crossover, normal, etcof the network cable 2. Length Test: Network cable length breakpoint test, not calibrated ion rechuireNote: The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instrumentsThe length must be between 2.5 meters and 200 meters, otherwise the measurement data will be inaccurate 3.Line Hunting mode: Normal mode/Anti-jamming mode 1The closer the receiver probe is to the target line, the stronger the signal and the louder the soundThe adjuster on the receiver is used to adjust the sensitivity when hunting for lines 2Note: The hunt mode of the receiver should be consistent with the hunt mode of the transmitter, short press the receiver function key to switch, otherwise the signal will not be received 4. Poe Test: Power Supply Wire Core and Power Supply Voltage Detection, Both Standard and Non-standard Poe Can Be Tested 5.Port Flashing Function/Link Test: Quickly find the network cable on the switch/routerLink Test: The link test is automatically performed while the port is flashing, and the screen will display the speed of the switch/router, full-duplex/half-duplex, auto-negotiation/forced negotiation 6.Compression Test: It is used to test whether the connection between the wire core of the network cable and the copper piece of the crystal head is connected 7.Setting Function: Mainly, you can view or change the language, backlight time, automatic shutdown time, contrast, and version options 8.Light Function Only on the Receiver: Press once to turn on the light, press again to turn off 9.Low Battery Reminder: The screen battery indicator flashes when the transmitter battery is low, and the battery status indicator flashes when the receiver battery is low Patskage Included: 1Set x NF-8209S Network Cable Tester Kind Tips: 1.Please read the manual before using or servicing this equipment 2.The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instrumentsOtherwise, the instrument will be burned NF-8209S Normal/Anti-jamming Mode Continuity/Crimp/Length Test Port Blink/ POE Test New Upgrade Top 10 Functions CONT Length Scan PoE Flash QC Test NCV LED Type-C Feel Continuity Test Test Shielded Wire Testing open, short, cross, etc. for Network cable Length Measurement Measure the network cables within the range of 2.5m-500m Dual Mode- Cable Scan Anti-interference mode and the normal mode can be switched at will, and are widely used in engineering wiring, equipment room maintenance, equipment updates, and other scenarios Normal Mode: Search by analog signal, with strong discrimination, can be found quickly target cable Anti-interference Mode: Search through digital signal, no noise interference, high sensitivity Crystal Head Crimp Test Accurately and quickly test whether the crystal head is crimped in good condition Port blinks identify the docking port Connect the network cable to be tested to the transmitter, and the indicator light of the port connected to this network cable in the switch or router to be tested will flash at the same frequency Port Blink F unction LinkTest Automatically perform link test while the port blinking function is in progress NCV Induction Pen Accurate identification of strong electric cables, safer construction USB Lithium Battery Direct Charge 1400mAh polymer lithium battery, longer battery life, supports Type-C charging interface, can be used for a long time LED Lighting Dahili kondenser lensi, karanlık ortamlarda kolay kullanım sağlar Two-color Injection Molding İç katman sert bir kabuk, sağlam ve düşmeye dayanıklı, dış katman ise rahat hissettiriyor Receiver Knob Sensitivity Adjustable Ayarlanabilir hassasiyet, ağ kablosunu kolayca bulmanız için gereken özellik Seiko Manufacturing Focus on Detail Starting from the details, relying on quality to win the best Product Structure 1 Product parameters Package List
